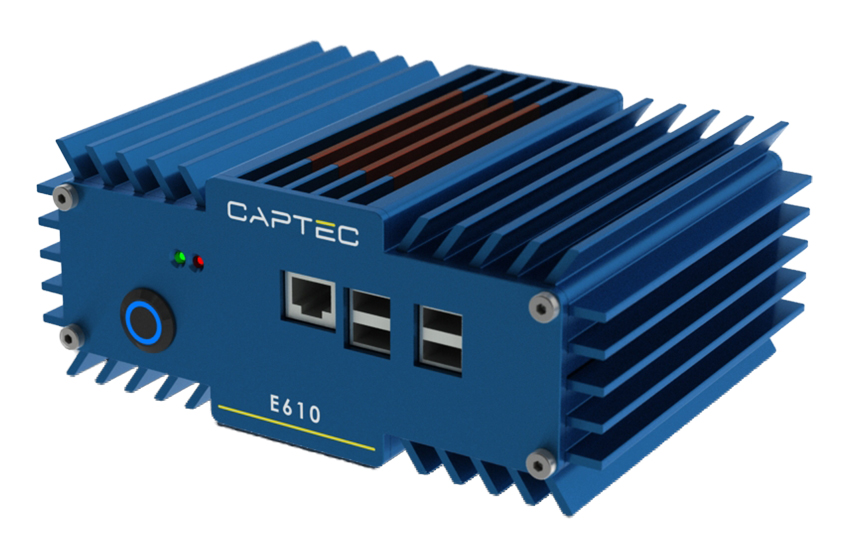

Powered by Intel 6th generation i3, i5 and i7 CPUs, the E610 delivers powerful, unthrottled performance in a compact, industrial fanless design. With up to 16 configurable I/O ports, the E610 is ideal for a variety of compute-intensive edge-based applications. The innovative bimetallic aluminium and copper chassis design ensures 100 per cent component performance across a wide ambient temperature range in demanding industrial applications.
Embedded
Fanless
Wide Temperature Range
Computer
The new Captec E610 Series delivers powerful, unthrottled performance in a compact, industrial fanless design with low power consumption. Powered by Intel 6th generation i3 and i5 CPUs, the innovative bimetallic aluminium and copper chassis design ensures you receive 100 per cent component performance, across a wide ambient temperature range for demanding industrial applications. In addition, a host of expansion options allow for application-specific installations across a range of platforms and environments.
We promise to keep the emails relevant, and you can unsubscribe at any time.
</center
| LAN | 2 x gigabit LAN |
| CPU | Intel Celeron 3855U – (2 Core, 1.6 GHz, 15W) |
| Memory | Up to 16GB RAM |
| Storage | 1 x SATA DOM |
| Storage Options | Up to 128GB SATA DOM |
| Graphics | 1 x HDMI |
| USB | 2 x USB 2.0 |
| Audio | 1 x line in |
| Power Supply | 12V DC input |
| Dimensions | 175mm x 121mm x 65mm (WxDxH) |
| Weight | < 1.21Kg |
| Operating Temp. | -10°C to 50°C |
| Ordering Codes | EC-211-616 – E610, 3855U barebone |
| Expansion Options | CANbus LAN Serial GPIO USB |
| Certification | CE, RoHS, FCC, NRTL |
