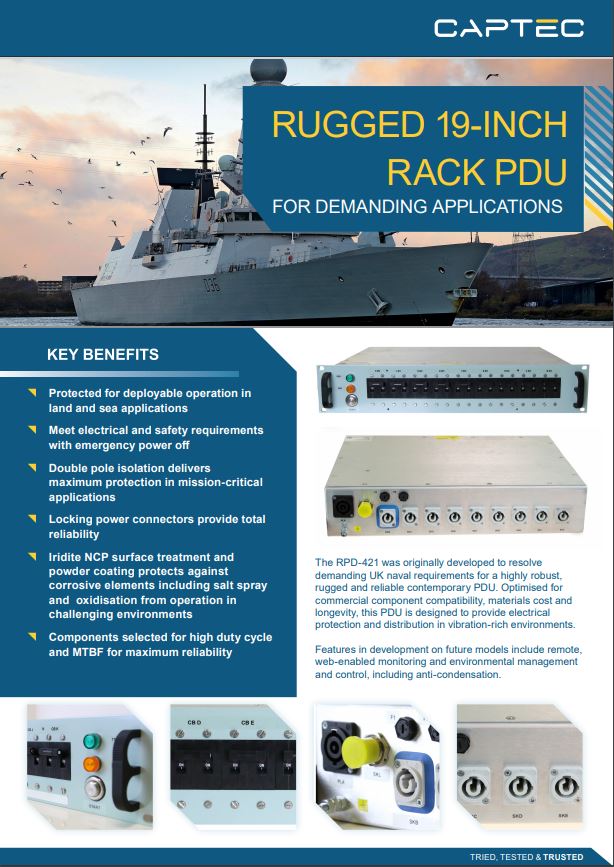

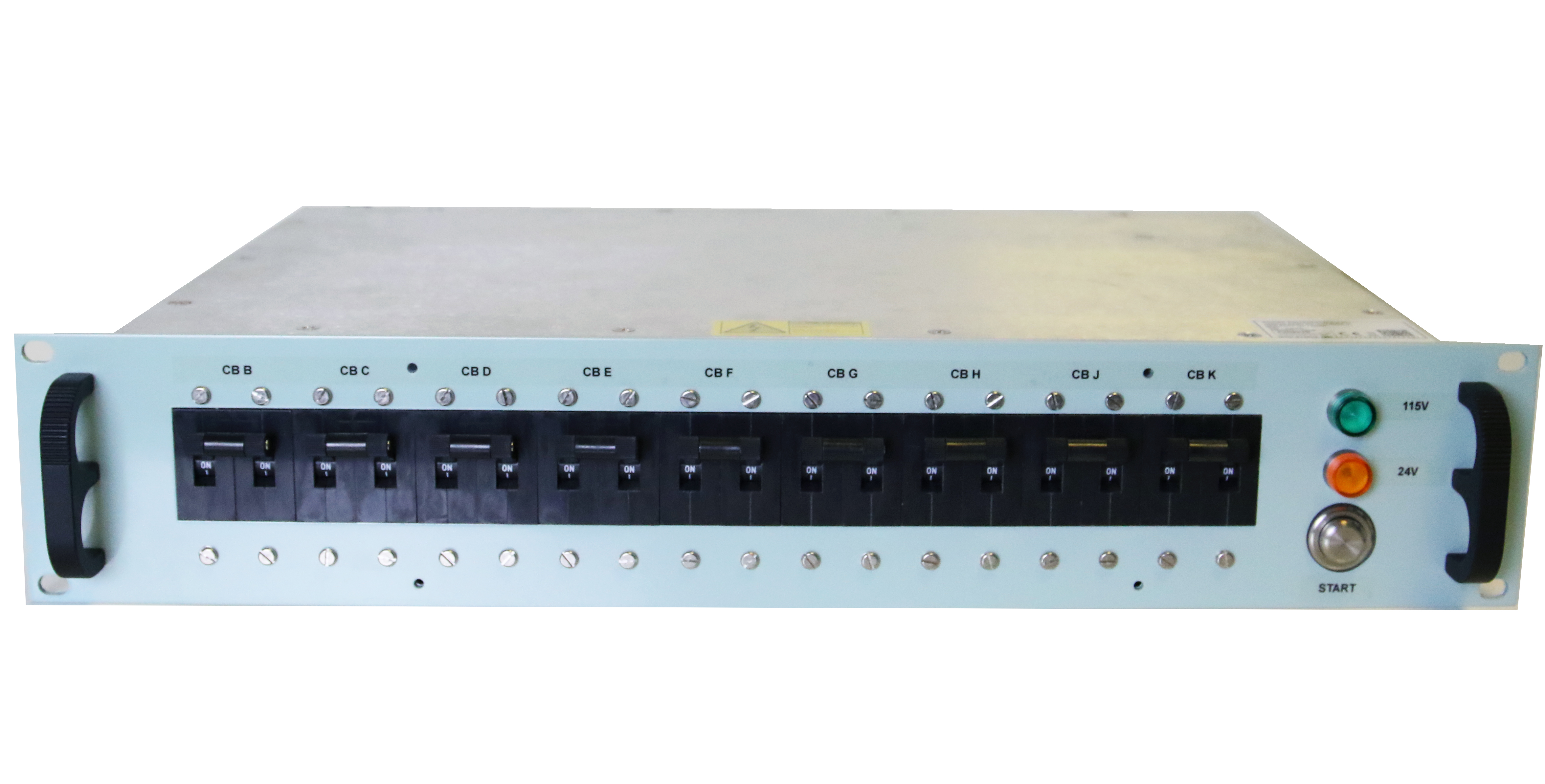

The RPD-421 was originally developed to resolve demanding UK naval requirements for a highly robust, rugged and reliable contemporary PDU. Optimised for commercial component compatibility, materials cost and longevity, this PDU is designed to provide electrical protection and distribution in vibration-rich environments.
Features in development on future models include remote, web-enabled monitoring and environmental management and control, including anti-condensation.
To learn more about our rack integration services visit our rackmount computers main page.
The RPD-421 was originally developed to resolve demanding UK naval requirements for a highly robust, rugged and reliable contemporary PDU. Optimised for commercial component compatibility, materials cost and longevity, this PDU is designed to provide electrical protection and distribution in vibration-rich environments.
Features in development on future models include remote, web-enabled monitoring and environmental management and control, including anti-condensation.
| Material | Aluminium |
| Colour | Black (other colours on request) |
| Connectivity | Locking power connectors (Neutrik PowerCon) |
| Outputs | 8 system outputs and fused output for fan tray |
| Protection | 2A double pole hydraulic/magnetic circuit breakers (alternate breaker values available on request) |
| Indication | Input good, Output live |
| Supported Current | 32A input |
| U Height | 2U |
| Input Voltage | 110VAC and 230VAC – specify with order |
| Height | 88mm |
| Depth | 282mm |
| Width | 19” / 483mm (427mm chassis and rackmounting brackets) |
| Weight | 5kg |
| Operating Temperature | -5°C To +60°C |
| Storage Temperature | -60°C To +80°C |
| Shock | Designed for use in high shock and vibration environments, including MAP 01-470 |
| Certification | DEF Stan 00-35, MIL-STD-810, BS EN 60529, BS EN 60950 |
