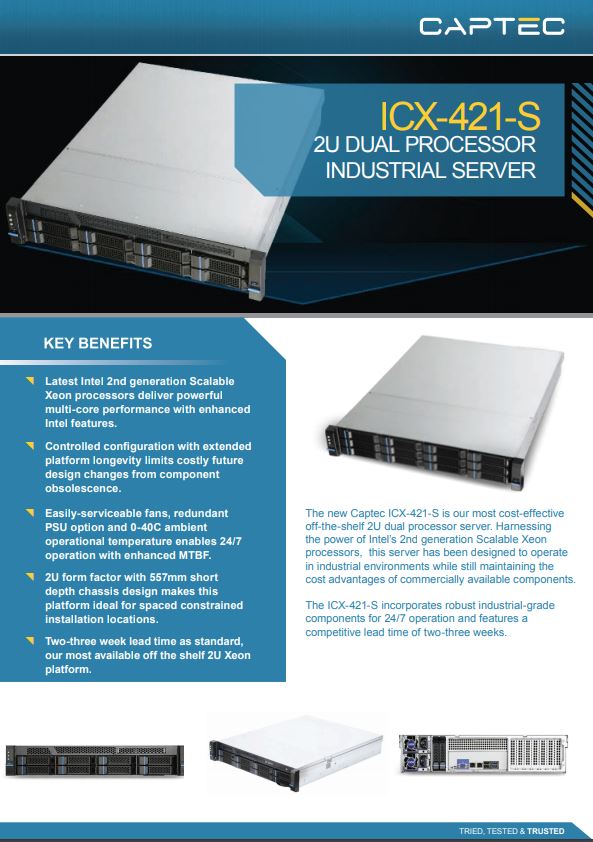

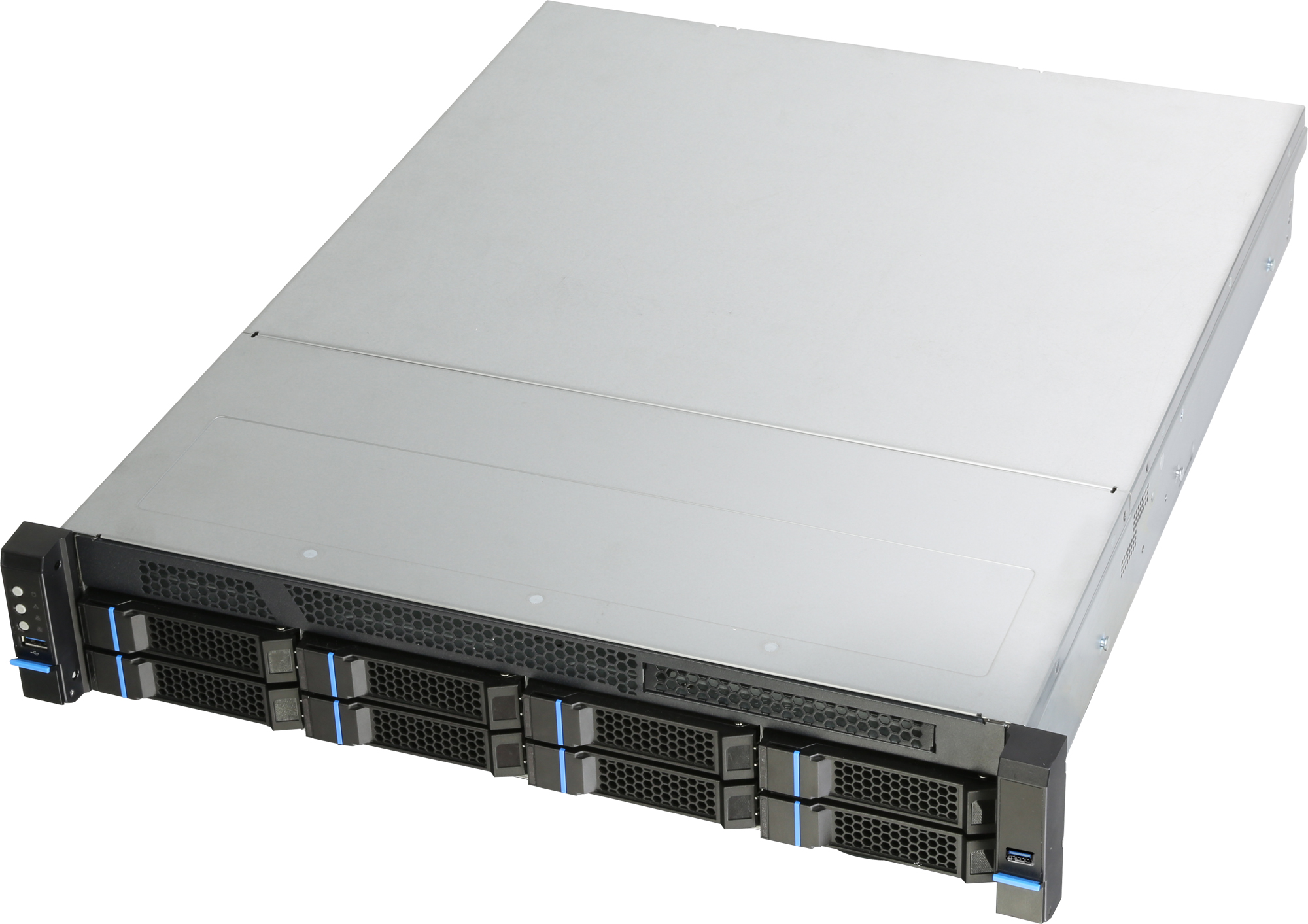

The ICX-421-S is our most cost-effective off-the-shelf 2U dual processor server. Harnessing the power of Intel’s Scalable Xeon processors, this server has been designed to operate in industrial environments while still maintaining the cost advantages of commercially available components.
Each model incorporates robust industrial-grade components for 24/7 operation and features a competitive lead time of two-three weeks.
Xeon range
To learn more about our rack integration services, visit our rackmount computers main page.
Industry-leading performance with Intel’s latest Scalable Xeon processors. Support for a wide range of multi-core single and dual socket configurations ensures the right performance level is specified for your application while retaining cost-effectiveness.
Controlled configuration with extended longevity limits costly future design changes from component obsolescence.
Easily serviceable fans, redundant PSU option and 0-40C ambient operational temperature enables 24/7 operation with enhanced MTBF.
2U form factor with 557mm short depth chassis design make this platform ideal for space constrained installation locations.
With a competitive lead time of two-three weeks from point of order, the ICX-421-S is our most readily-available off-the-shelf 2U server and is ideal for time-sensitive opportunities.
| CPU | Intel Xeon Scalable Processor/2nd Gen Intel Xeon Scalable processor up to 205W |
| Chipset | Intel C621 |
| Memory | 8 x DDR4 RDIMM / LRDIMM / RDIMM 3DS / LR DIMM 3DS 2666MHz |
| Memory Capacity | Up to 512GB RDIMM / 1024GB LRDIMM / 2048GB RDIMM 3DS / LRDIMM 3DS |
| PCIe Expansion | 2 x PCIe Gen3 x16 |
| LAN | 2 x Marvell 88E 1512 PHY GB LAN |
| Storage | 10 x SATA 6Gb/s / 1 x M.2 (SATA / PCIe x4) |
| Storage Options | Up to 8 x 2.5” / 3.5” SSD/HDD (hot swap) or |
| Graphics | 1 x VGA |
| USB | 4 x USB 2.0 / 3 x USB 3.0 |
| Server Management | IPMI 2.0 compliant BMC |
| TPM | Supported |
| Chassis | 2U 19” rackmount |
| Expansion | 1 x slim ODD |
| Dimensions | 438mm x 88mm x 557mm (WxHxD) |
| Weight | 9.5 kg (gross) |
| Fans | 2 x 80mm intake fan (hot swap) |
| Operating Temperature | 0-40C ambient operating temperature |
| PSU | Single 400W 80 PLUS Gold (standard) |
| Input voltage | 100-240V AC |
| Certification | CE, RoHS |
| Expected Discontinuance | 2024 |
