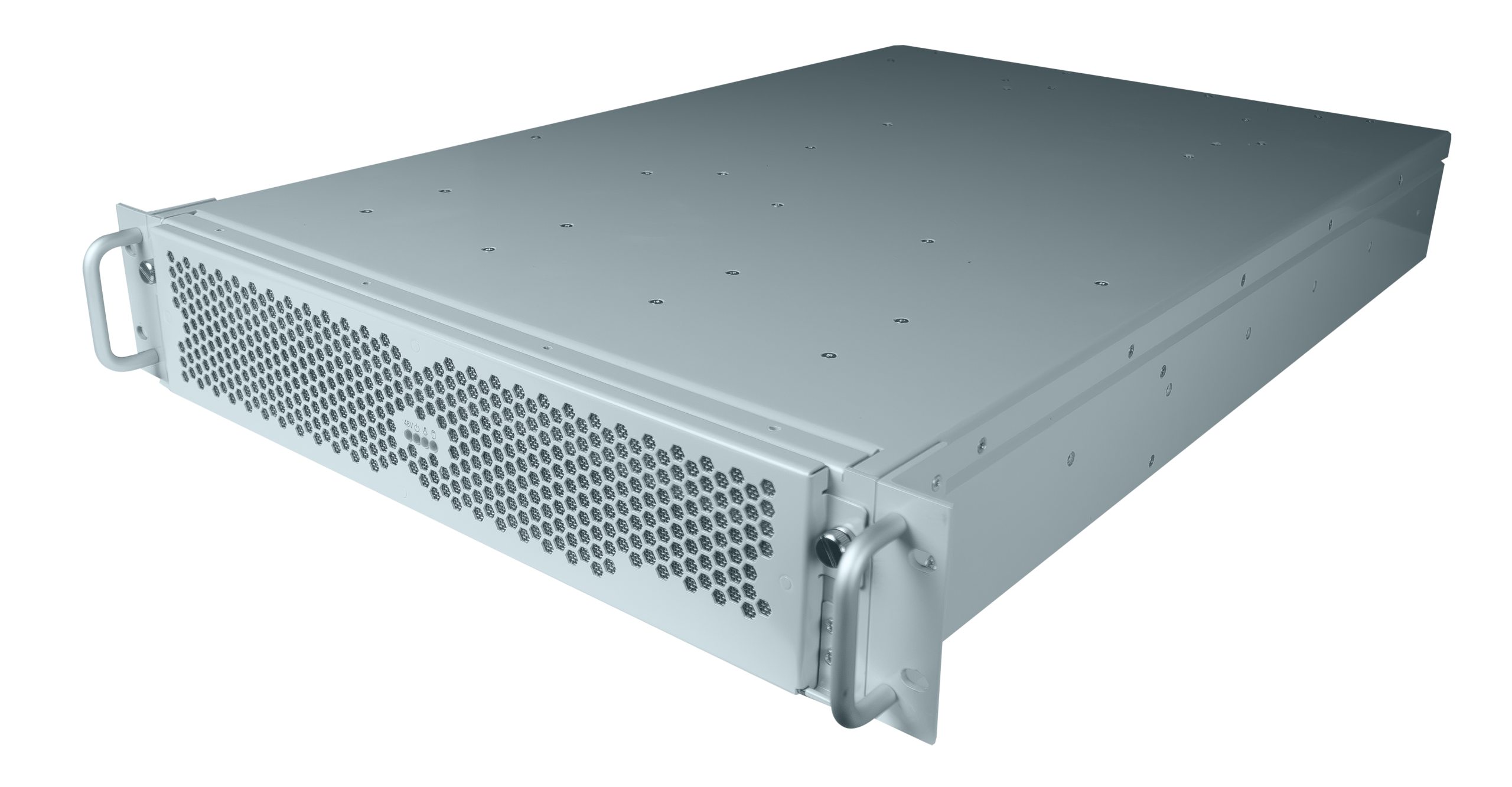

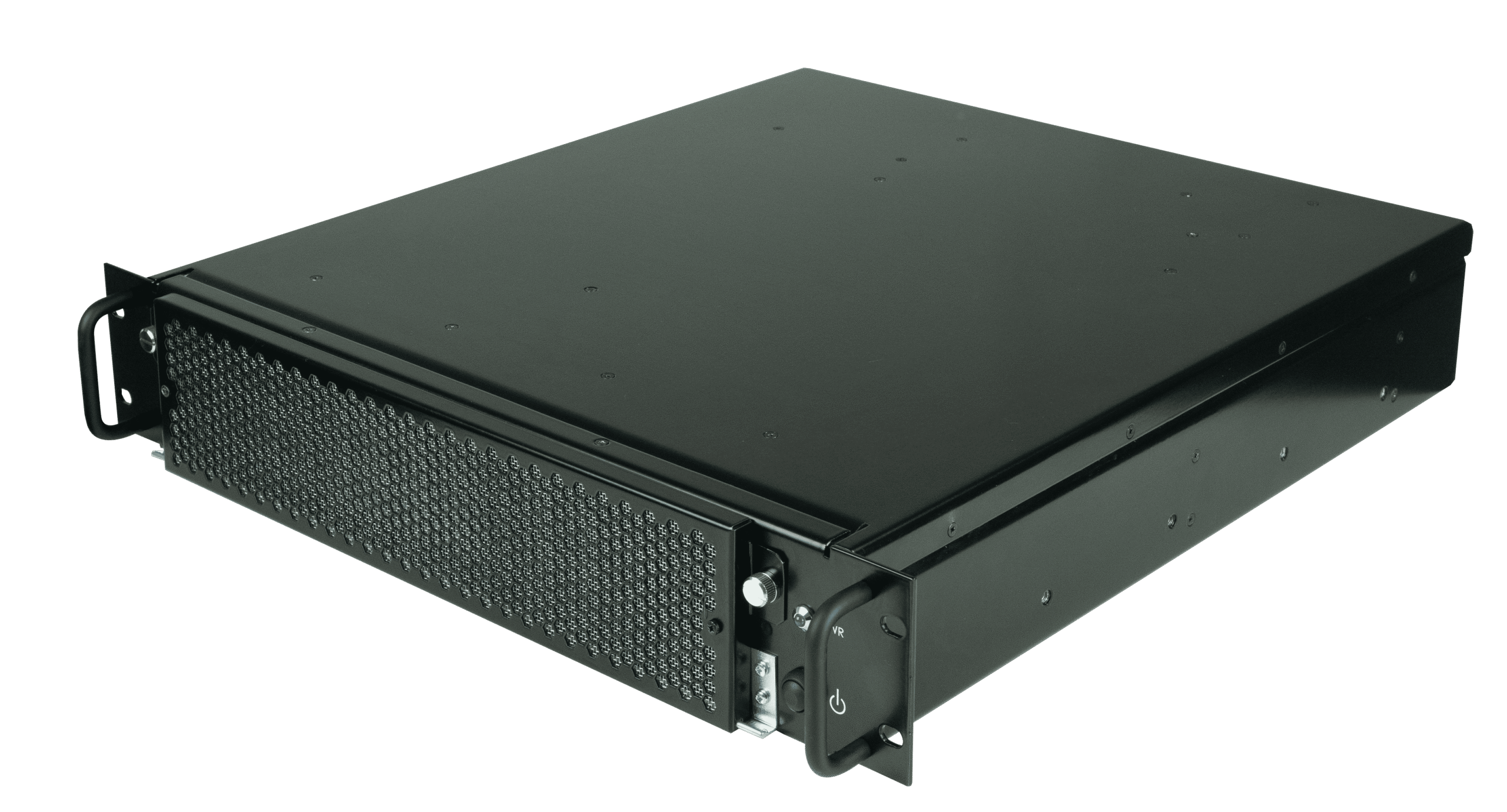

The Captec SRS-04 Rugged Server offers high processing performance in a short depth 19” rackmount form factor. Featuring expansion to enable a range of additional connectivity such as secure fibre interfaces are available up to 100Gb/s, giving high bandwidth for connecting data around the wider system. Enhanced EMI filtering combined with a rugged aluminium chassis provides a low EMI signature, suitable for use in TEMPEST environments. Captec Rugged Servers are designed, built, and formally qualified to meet your exact specification requirements and required military standards, some of which may include MIL-STD-810H, MILSTD-461G and DO-160G, for use in challenging defence applications.
2U System
Intel Core i
DC Input
Expansion Slots
Intel Xeon
MIL-STD
Wide Temperature Range
Shock Resistant

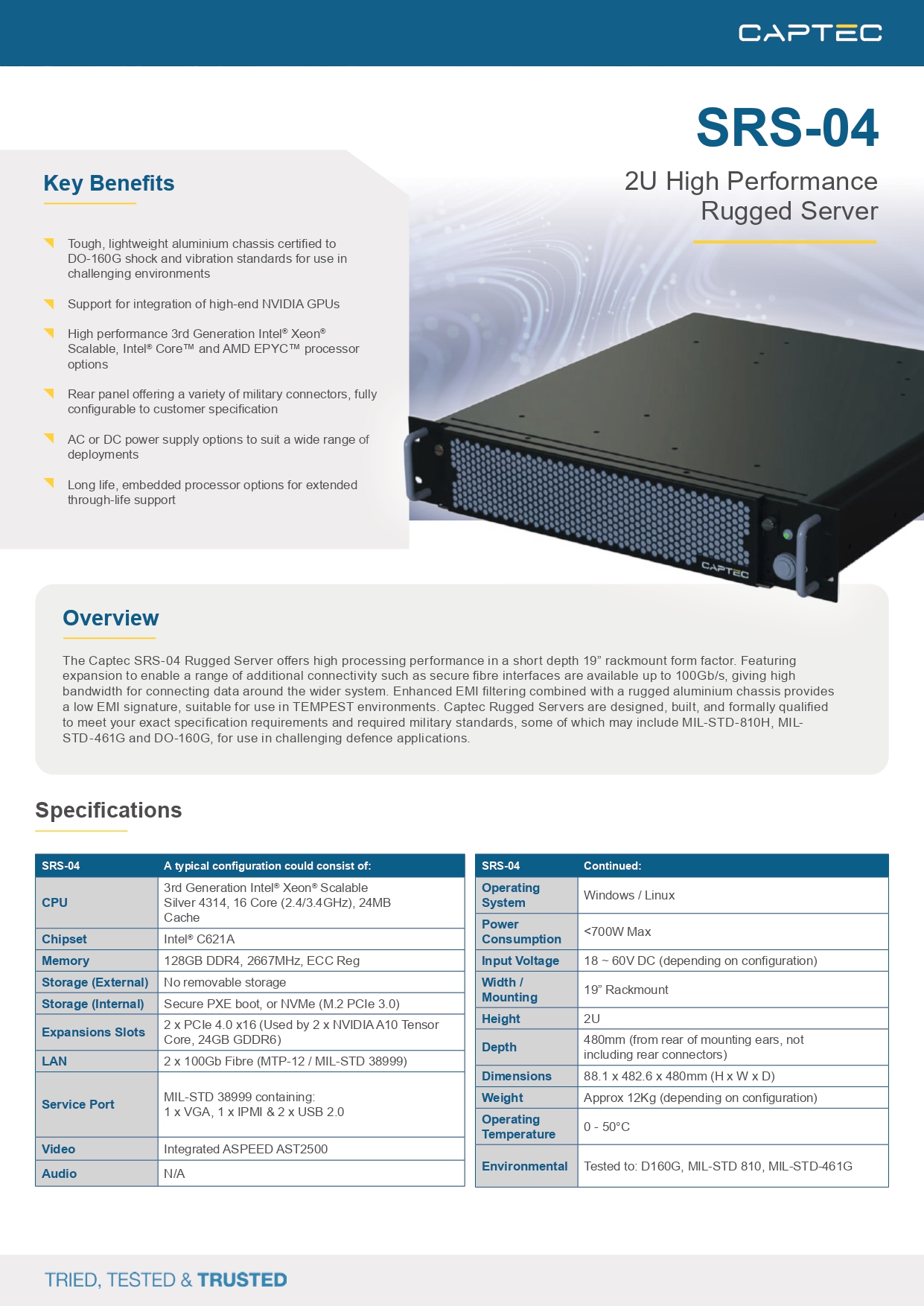

Data Sheet
Featuring expansion to enable a range of additional connectivity such as secure fibre interfaces are available up to 100Gb/s, giving high bandwidth for connecting data around the wider system.
Enhanced EMI filtering combined with a rugged aluminium chassis provides a low EMI signature, suitable for use in TEMPEST environments.
Captec Rugged Servers are designed, built, and formally qualified to meet your exact specification requirements and required military standards, some of which may include MIL-STD-810H, MILSTD-461G, and DO-160G, for use in challenging defence applications.
| CPU | 3rd Generation Intel® Xeon® Scalable Silver 4314, 16 Core (2.4/3.4GHz), 24MB Cache |
| Chipset | Intel® C621A |
| Memory | 128GB DDR4, 2667MHz, ECC Reg |
| Storage (External) | No removable storage |
| Storage (Internal) | Secure PXE boot, or NVMe (M.2 PCIe 3.0) |
| Expansion Shots | 2 x PCIe 4.0 x16 (Used by 2 x NVIDIA A10 Tensor Core, 24GB GDDR6) |
| LAN | 2 x 100Gb Fibre (MTP-12 / MIL-STD 38999) |
| Service Port | MIL-STD 38999 containing: 1 x VGA, 1 x IPMI & 2 x USB 2.0 |
| Video | Integrated ASPEED AST2500 |
| Audio | N/A |
| Operating System | Windows / Linux |
| Power Consumption | <700W Max |
| Input Voltage | 18 ~ 60V DC (depending on configuration) |
| Width / Mounting | 19” Rackmount |
| Height | 2U |
| Depth | 480mm (from rear of mounting ears, not including rear connectors) |
| Dimensions | 88.1 x 482.6 x 480mm (H x W x D) |
| Weight | Approx 12Kg (depending on configuration) |
| Operating Temperature | 0°C to 50°C |
| Environment | Tested to: D160G, MIL-STD 810, MIL-STD-461G |
