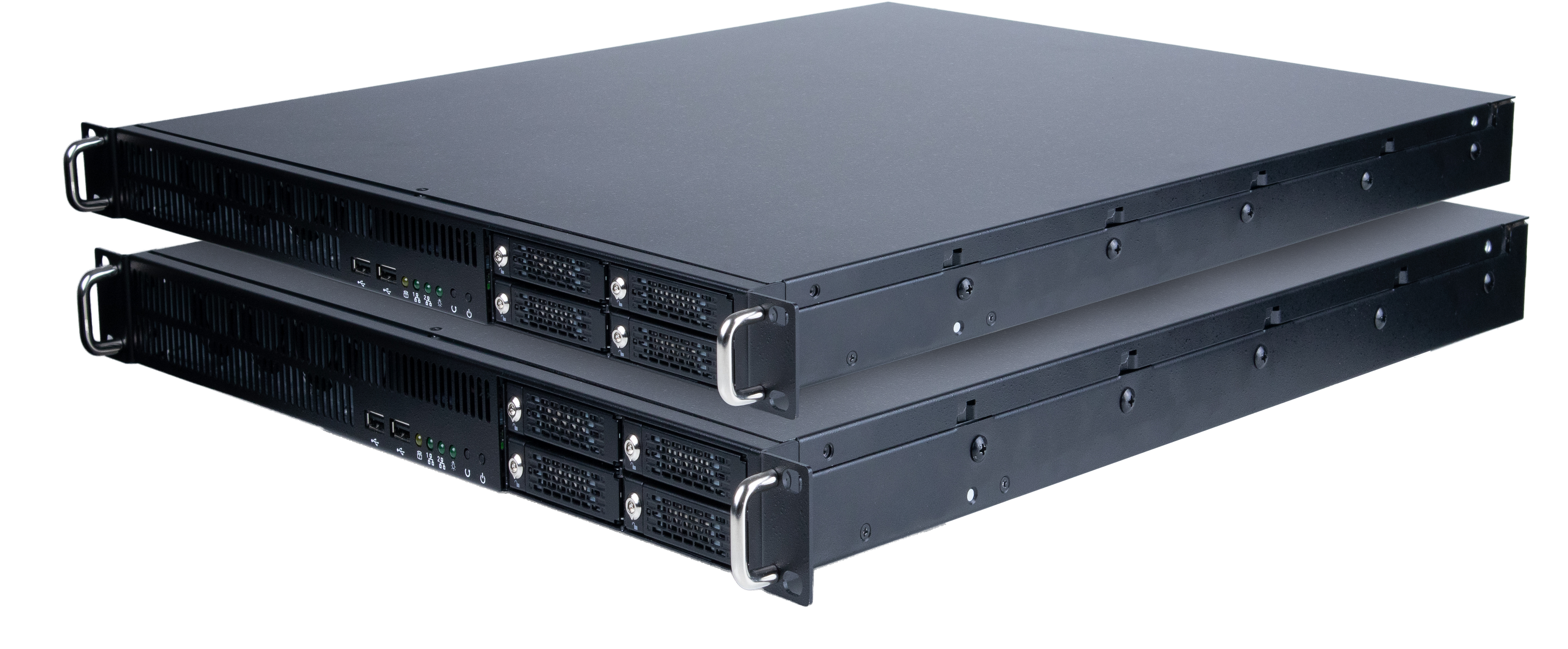

The Captec SES-110 Secure Encrypted Server provides high performance compute in a compact 1U 19-inch rackmount chassis, designed for secure handling of sensitive and classified data. Hardware-based AES-256 encryption with tamper-evident, removable NVMe storage protects information at rest, while high bandwidth fibre connectivity up to 100Gb/s and optional GPU and I/O expansion support demanding mission workloads.
The SES-110 is built around Viasat DARC-ssd 600 encrypted NVMe drives, certified under NCSC CAPS for use up to UK Top Secret and NATO Cosmic Top Secret. Optional ruggedisation to relevant MIL standards is available for deployment in harsh defence and security environments.
The Captec SES range is a family of highly secure servers that have been developed in close collaboration and partnership with Viasat. The SES-110 incorporates Viasat’s DARC-ssd® 600 drives, an NCSC CAPS-evaluated Data-at-Rest device which is certified up to UK Top Secret and NATO Cosmic Top Secret classifications to safeguard Official, Secret, and Top Secret data in enterprise and tactical environments, such as data stored in vehicles, aircraft, ships and forward operating bases. Each SES-110 server features 4 x Viasat DARC-ssd ® 600 NVMe™ AES-256 hardware encrypted solid state drives. The server maintains NATO Cosmic Top Secret compliance while powered on. When powered off, it is classified as NATO Unclassified, allowing the drives to be transported or handled without special security measures.
The SES-110 features a range of 14th generation Intel CPUs, with a choice of i9, i7 and i5 units.
SES-110 servers are available in a 1U rackmount form factor, robustly constructed with configurable payloads.
SES-110 servers provide a wide range of expansion options for high bandwidth fibre and GPU processing. They also offer extensive communications and I/O connectivity options. Processing power, storage, and power supply can be configured to requirement, and systems can be supplied with a pre-loaded OS.
The SES range is available with optional ruggedisation up to MIL standard if required, to support deployment in demanding environments.
| CPU | Commercial: Embedded: *Clock Speed based on Performance Cores |
| Chipset | Intel® Z690 |
| Memory | Up to 128GB DDR4, non-ECC RAM |
| Storage | Viasat DARC-ssd® 600 (AES-256 Encryption) |
| Disks | 1 to 4 x M.2 (2280) NVMe |
| Graphics | Onboard Intel® UHD Graphics 770. Additional discrete graphics card options are available. |
| Front I/O | 2 x USB 3.0 Type A ports (for use with Viasat Keystone Token) |
| Rear I/O | 2 x 10Gb LAN, Intel® X710 |
| Expansion | 1 Slot: 1 x PCIe4.0 x 16 |
| Optional I/O | Fibre LAN up to 100Gb |
| Operating System | Microsoft® Windows: Linux: Hypervisor: *Please contact our sales teams to discuss your project requirements |
| DVD | Custom build option on request |
| Dimensions | 483W x 44H x 522D (mm) |
| PSU | High reliability single, or dual redundant power supplies: |
| Form Factor | 1U, 19” Rackmount Design (2U SES-120 variant available) |
| Weight | Approx. 12Kg, depending on configuration |
| Construction | Heavy duty cold rolled electroplated steel |
| Operating Temperature | 0°C ~ +40°C |
| Storage Temperature | -40°C ~ +70°C |
| Certification | CE, RoHS, REACH |
