The Captec SES range is a family of highly secure servers that have been developed in close collaboration and partnership with Viasat. The SES-120 incorporates Viasat’s DARC-ssd® 600 drives, an NCSC CAPS-evaluated technology, to safeguard official, secret, and top-secret information in enterprise and tactical environments, such as data stored in vehicles, aircraft, and ships.
Featuring military-grade AES-256 hardware encryption and a tamper-evident design, the SES-120 is engineered with custom forced-air cooling, to minimise throttling during heavy workloads. It is available in a compact 2U form factor with up to four 1Tb NVMe™ SSD drives, which can be unlocked in a single drive set.
This range also includes a configured 1U form factor variant, the SES-110, which can be viewed here.
The SES range is available with optional ruggedisation up to MIL standard if required, to support deployment in demanding environments. They also offer a wide range of communications and I/O connectivity and configurable options for processing power, storage, and power supply, as well as pre-loaded OS.
Captec’s end-to-end expertise in supporting customers across challenging, critical, and certified environments has developed a deep understanding of the technological requirements and strict industry standards you must meet. Our expert team is ready and able to support you in engineering a solution designed to meet your exacting requirements for performance, longevity, reliability, budget, and functionality. Bring us your challenge & experience the difference.

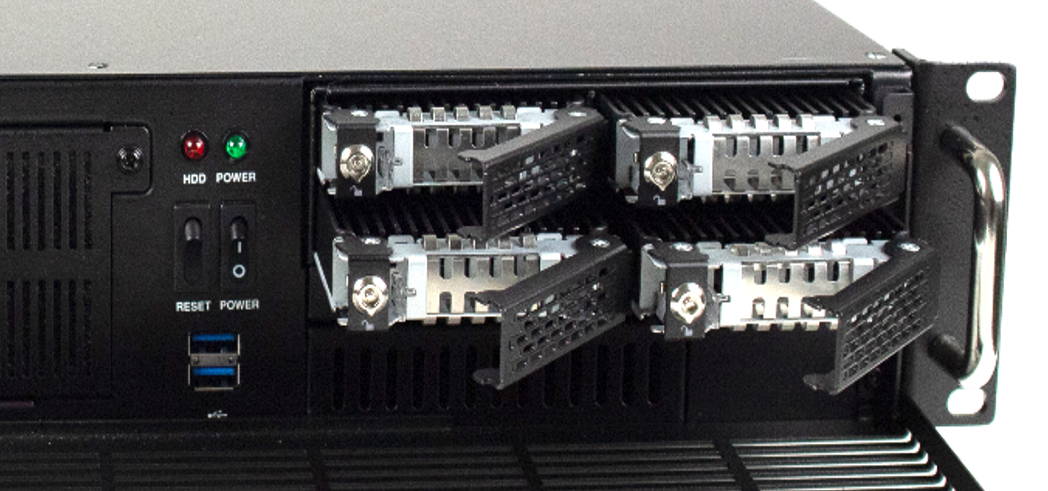

Each SES-120 server features 4 x Viasat DARC-ssd ® 600 NVMe™ AES-256 hardware encrypted solid state drives.
The SES-120 features a range of 14th generation Intel CPUs, with a choice of i9, i7 and i5 units.
SES-120 servers are available in a 2U rackmount form factor, robustly constructed with configurable payloads.
SES-120 servers provide a wide range of expansion options for high bandwidth fibre and GPU processing.
Ruggedised variants of the SES-120 are available up to MIL-STD, supporting the harshest operating environments.
| CPU | Commercial: Embedded: *Clock Speed based on Performance Cores |
| Chipset | Intel® Z690 |
| Memory | Up to 128GB DDR4, non-ECC RAM |
| Storage | Viasat DARC-ssd® 600 (AES-256 Encryption) |
| Disks | 1 to 4 x M.2 (2280) NVMe |
| Graphics | Onboard Intel® UHD Graphics 770. Additional discrete graphics card options are available. |
| Front I/O | 2 x USB 3.0 Type A ports (for use with Viasat Keystone Token) |
| Rear I/O | 2 x 10Gb LAN, Intel® X710 |
| Expansion | 3 Slots: 1 x PCIe4.0 x 16, 1 x PCIe4.0 x 8, 1 x PCIe3.0 x 1 |
| Optional I/O | Fibre LAN up to 100Gb |
| Operating System | Microsoft® Windows: Linux: Hypervisor: *Please contact our sales teams to discuss your project requirements |
| DVD | Custom build option on request |
| Dimensions | 483W x 88H x 510D (mm) |

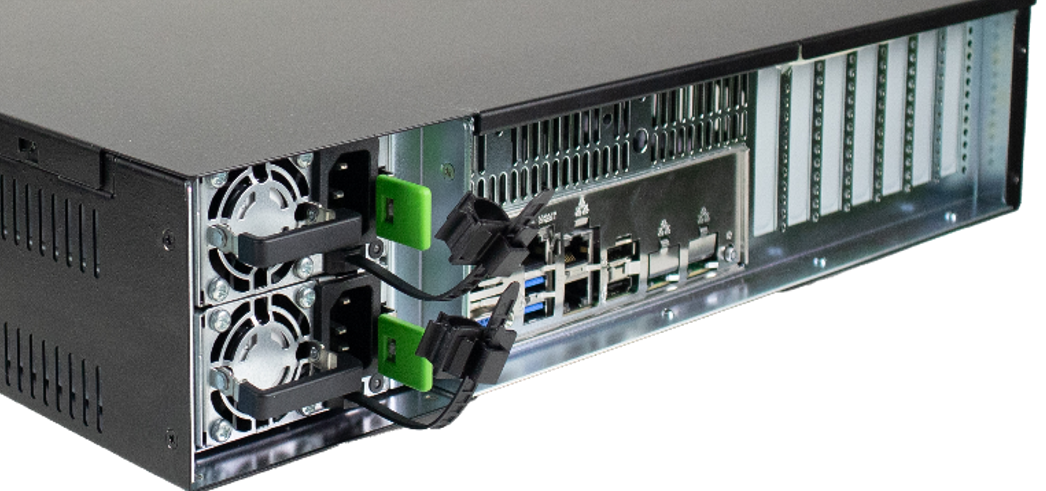

| PSU | High reliability single, or dual redundant power supplies: |
| Form Factor | 2U, 19” Rackmount Design (1U SES-110 variant available) |
| Weight | Approx. 12.5Kg, depending on configuration |
| Construction | Heavy duty cold rolled electroplated steel |
| Operating Temperature | 0°C ~ +40°C |
| Storage Temperature | -40°C ~ +70°C |
| Certification | CE, RoHS, REACH |
