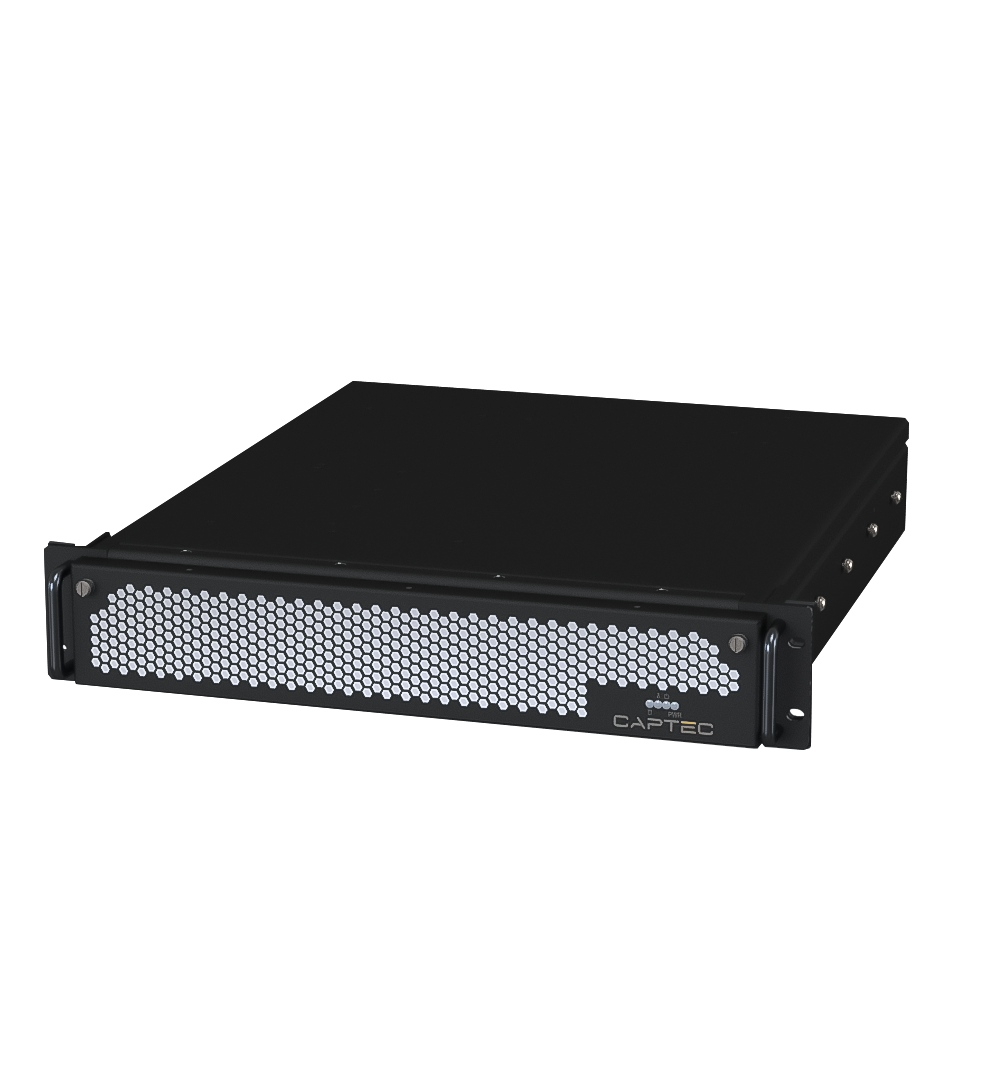

The Captec SRS-01 Rugged Server offers high processing performance in a short-depth 19” rackmount form factor. Featuring expansion to enable a range of additional connectivity such as secure fibre interfaces are available up to 100Gb/s, giving high bandwidth for connecting data around the wider system. Enhanced EMI filtering combined with a rugged aluminium chassis provides a low EMI signature, suitable for use in TEMPEST environments. Captec Rugged Servers are designed, built, and formally qualified to meet your exact specification requirements and required military standards, some of which may include MIL-STD-810H, MILSTD- 461G and DO-160G, for use in challenging defence applications.
To enable a range of additional connectivity, such as secure fibre interfaces available up to 100Gb/s, giving high bandwidth for connecting data around the wider system.
Enhanced EMI filtering combined with a rugged aluminium chassis provides a low EMI signature, suitable for use in TEMPEST environments.
Captec Rugged Servers are designed, built, and formally qualified to meet your exact specification requirements and required military standards, some of which may include MIL-STD-810H, MILSTD- 461G and DO-160G, for use in challenging defence applications.
| CPU | 5th Generation Intel – Intel® Xeon® Silver 4516Y+, 24 Core (2.2/3.7GHz), 45MB Cache |
| Chipset | Intel® C741 |
| Memory | Up to 2TB 3DS ECC RDIMM |
| Storage (External) | 1 x 2.5” or 2 x 2.5” Removable SDD (In a bank of 8 bays for the system) |
| Storage (Internal) | Upto 2 x NVMe drives (M.2 PCIe 5.0) |
| Expansion Shots | 2 x PCIe 5.0 x16 (1 x used by 4 x 1Gb Fibre NIC) |
| Graphic | (1 x used by 4 x 1Gb Fibre NIC) |
| LAN | 4 x 10Gb Fibre (LC / MIL-STD 38999) |
| Service Port | MIL-STD 38999 containing: |
| Video | Integrated ASPEED AST2500 |
| Audio | N/A |
| Operating System | Windows / Linux |
| Power Consumption | <700W Max |
| Input Voltage | 18 ~ 60V DC (depending on configuration) |
| Width / Mounting | 19” Rackmount |
| Height | 2U |
| Depth | 499mm (from rear of mounting ears, not including rear connectors) |
| Dimensions | 88.1 x 482.6 x 499 mm (H x W x D) |
| Weight | Approx 15Kg (depending on configuration) |
| Operating Temperature | -20°C to +55°C |
| Environment | Designed to Meet: MIL-STD-461, MIL-STD-810H |
