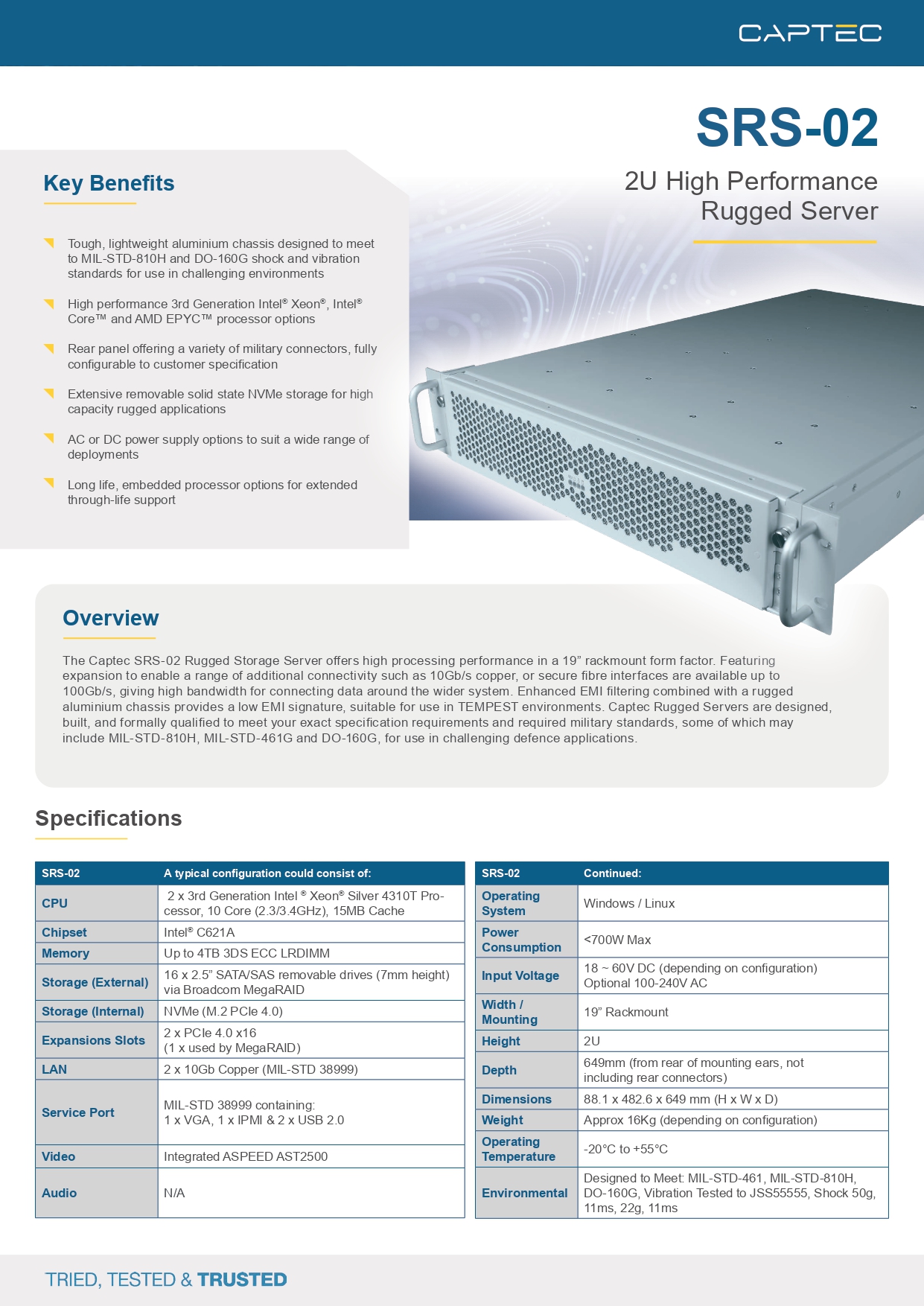

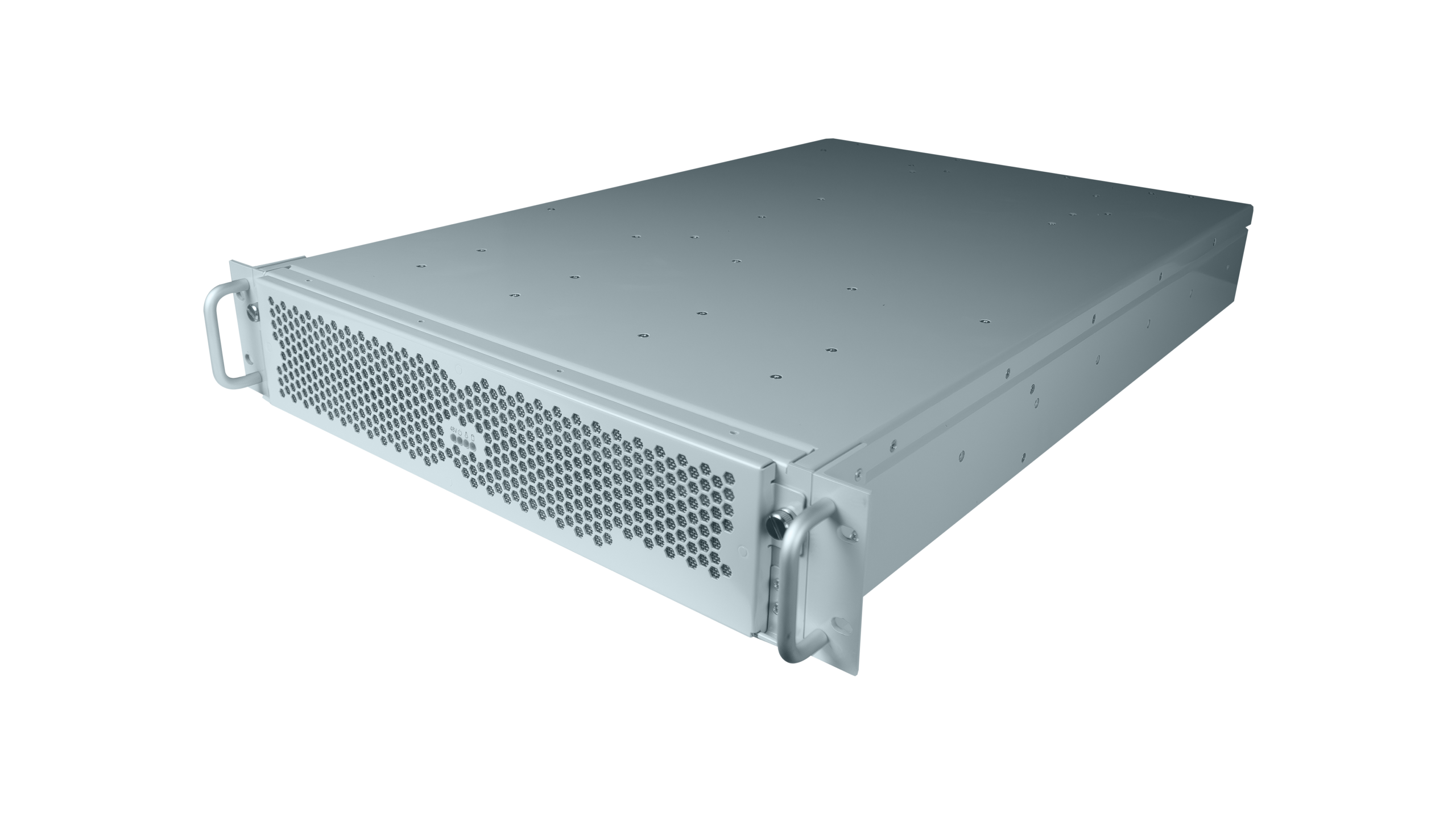

The Captec SRS-02 Rugged Storage Server offers high processing performance in a 19” rackmount form factor. Featuring
expansion to enable a range of additional connectivity, such as 10Gb/s copper, or secure fibre interfaces are available up to
100Gb/s, giving high bandwidth for connecting data around the wider system. Enhanced EMI filtering combined with a rugged
aluminium chassis provides a low EMI signature, suitable for use in TEMPEST environments. Captec Rugged Servers are designed,
built, and formally qualified to meet your exact specification requirements and required military standar
Featuring expansion to enable a range of additional connectivity, such as 10Gb/s copper, or secure fibre interfaces are available up to
100Gb/s, giving high bandwidth for connecting data around the wider system.
Enhanced EMI filtering combined with a rugged aluminium chassis provides a low EMI signature, suitable for use in TEMPEST environments.
Captec Rugged Servers are designed, built, and formally qualified to meet your exact specification requirements and required military standards, some of which may include MIL-STD-810H, MIL-STD-461G, and DO-160G, for use in challenging defence applications.
| CPU | 2 x 3rd Generation Intel ® Xeon® Silver 4310T Processor, 10 Core (2.3/3.4GHz), 15MB Cache |
| Chipset | Intel® C621A |
| Memory | Up to 4TB 3DS ECC LRDIMM |
| Storage (External) | 16 x 2.5” SATA/SAS removable drives (7mm height) via Broadcom MegaRAID |
| Storage (Internal) | NVMe (M.2 PCIe 4.0) |
| Expansion Shots | 2 x PCIe 4.0 x16 (1 x used by MegaRAID) |
| LAN | 2 x 10Gb Copper (MIL-STD 38999) |
| Service Port | MIL-STD 38999 containing: 1 x VGA, 1 x IPMI & 2 x USB 2.0 |
| Video | Integrated ASPEED AST2500 |
| Audio | N/A |
| Operating System | Windows / Linux |
| Power Consumption | <700W Max |
| Input Voltage | 18 ~ 60V DC (depending on configuration) |
| Width / Mounting | 19” Rackmount |
| Height | 2U |
| Depth | 649mm (from rear of mounting ears, not including rear connectors) |
| Dimensions | 88.1 x 482.6 x 649 mm (H x W x D) |
| Weight | Approx 16Kg (depending on configuration) |
| Operating Temperature | -20°C to +55°C |
| Environment | Designed to Meet: MIL-STD-461, MIL-STD-810H, DO-160G, Vibration Tested to JSS55555, Shock 50g, 11ms, 22g, 11ms |
