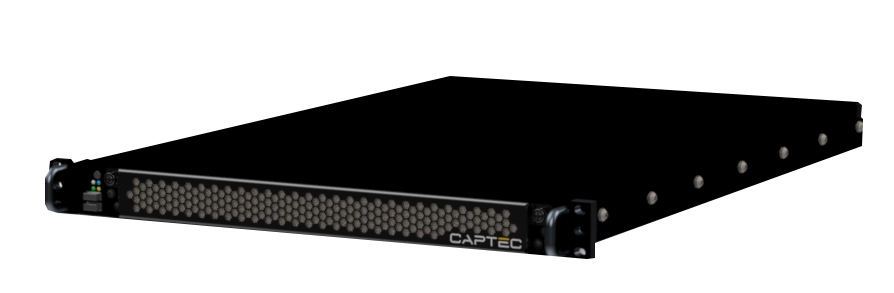

The Captec SRS-03 Rugged Server offers high processing performance in a 1U 19” rackmount form factor. Featuring expansion to enable a range of additional connectivity, such as 10Gb/s copper, or secure fibre interfaces are available up to 100Gb/s, giving high bandwidth for connecting data around the wider system. Enhanced EMI filtering combined with a rugged aluminium chassis provides a low EMI signature, suitable for use in TEMPEST environments. Captec Rugged Servers are designed, built, and formally qualified to meet your exact specification requirements and required military standards, some of which may include MIL-STD-810H, MILSTD-461G and DO-160G, for use in challenging defence applications.
Featuring expansion to enable a range of additional connectivity such as 10Gb/s copper, or secure fibre interfaces are available up to 100Gb/s, giving high bandwidth for connecting data around the wider system
Enhanced EMI filtering combined with a rugged aluminium chassis provides a low EMI signature, suitable for use in TEMPEST environments.
Captec Rugged Servers are designed, built, and formally qualified to meet your exact specification requirements and required military standards, some of which may include MIL-STD-810H, MILSTD-461G and DO-160G, for use in challenging defence applications.
| CPU | 2 x 5th Generation Xeon Scalable 4510T, 12 Core (2.00GHz, 3.7GHz), 30MB Cache |
| Chipset | Intel® C741 |
| Memory | Up to 4TB 3DS ECC RDIMM |
| Storage (External) | 4 x 2.5 removable drives |
| Storage (Internal) | Upto 2 x NVMe drives (M.2 PCIe 4.0) |
| Expansion Shots | 1 x PCIe 5.0 x8 (x16 Physical) |
| LAN | 2 x 10Gb Copper (MIL-STD 38999) |
| Service Port | MIL-STD 38999 containing: 1 x VGA, 1 x IPMI & 2 x USB 2.0 |
| Video | Integrated Aspeed AST2600 |
| Audio | N/A |
| Operating System | Windows / Linux |
| Power Consumption | <500W |
| Input Voltage | 18 ~ 60V DC (depending on configuration) |
| Width / Mounting | 19” Rackmount |
| Height | 1U |
| Depth | 649mm (from rear of mounting ears, not including rear connectors) |
| Dimensions | 43.7 x 482.6 x 649mm (H x W x D) |
| Weight | Approx 18Kg (depending on configuration) |
| Operating Temperature | -20°C to +55°C |
| Environment | Designed to Meet: MIL-STD-461, MIL-STD-810H |
